Exploring Different Types of RF Cables and Their Applications

Exploring Different Types of RF Cables and Their Applications

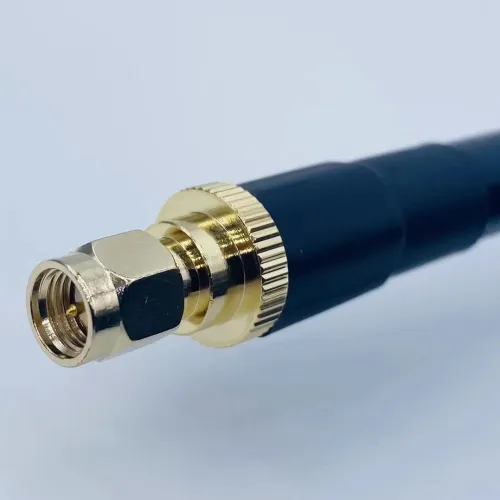

RF cables, also known as radio frequency cables, are specialized cables designed for the transmission of high-frequency signals in various applications. They play a crucial role in ensuring reliable and efficient communication between devices.

Get A Quote

Experienced R&D Team

Our R&D team is driven by expertise and ingenuity, seeking breakthrough innovations.

Professional Service Team

We will respond to order inquiries within 24 hours. (7*24 hours service)

Quality Management

All of CTW's cable products are 100% final tested - this is the CTW quality assurance.

Strong Productivity

Overmolding of stationary production lines for high volume production and mass production capabilities.

about us

We Have The Best Solutions for Your Business

With nearly 20 years experience in the cable industry, CTW is a market-leader in the development and manufacture of cable technology, with state-of-the-art modern facilities in China.CTW provides complete manufacturing solutions from design and build, to packaging and logistics.

CTW supports customer R&D with our own dedicated team of development engineers: this capability truly sets us apart from our competition. Our engineers have access to their own laboratory equipped with much of the technology found in the factory including overmolding machines. Within this environment, prototypes and pilot builds and can be tested, SOPs written and fixtures prepared ahead of full-scale production.

Learn More

Functions of RF Cables

RF cables serve critical functions in RF systems. They connect RF devices, such as antennas, transmitters, receivers, and amplifiers, enabling the transfer of high-frequency signals. RF cables provide the necessary link for data transmission, allowing for communication in wireless networks, satellite systems, radar systems, and other RF applications. They ensure efficient and accurate signal transfer, contributing to the overall performance of the RF system.

Advantages of RF Cables

RF cables provide several advantages in RF communication systems. They enable long-distance signal transmission without significant signal degradation, ensuring reliable communication over extended distances. RF cables also offer high bandwidth capabilities, supporting the transmission of high-frequency signals with minimal loss. Their versatility and compatibility with different devices make them widely adopted in various industries.

Importance of RF Cables

RF cables play a crucial role in ensuring reliable and efficient RF signal transmission. They provide a stable and high-quality connection between RF devices, minimizing signal loss, interference, and distortion. Properly selected and installed RF cables are vital for maintaining the integrity and performance of RF systems, ensuring accurate data transmission and seamless communication.

Process Flow of RF Cable Production

The production of RF cables follows a specific process flow. It begins with the selection of high-quality materials, including conductors, insulators, and shielding layers. The conductors are then stranded, shielded, and insulated to form the core of the cable. The cable is then jacketed, tested for performance and quality, and packaged for distribution. Strict quality control measures are employed throughout the production process to ensure compliance with industry standards and specifications.

Frequently Asked Question

Do you have any question?

There are various types of RF cables available, each designed for specific applications and signal requirements. Some common types include RG-6, RG-58, RG-59, and RG-11. These cables differ in terms of their impedance, attenuation, shielding, and frequency capabilities. Choosing the right type of RF cable depends on factors such as signal strength, distance, and the specific equipment or system being used.

It is essential to use the correct RF cable for your TV or satellite connection to ensure optimal signal quality and performance. RG-6 coaxial cables are commonly used for TV and satellite installations due to their low signal loss and high frequency capabilities. These cables are designed to handle the bandwidth required for transmitting high-definition (HD) signals and are suitable for both digital and analog television signals.

Yes, RF cables can be used for Internet connections, especially in applications such as cable modems or cable Internet services.

Yes, RF cables come in various lengths to accommodate different installation requirements. The length of the cable needed depends on the distance between the transmitting and receiving devices or the connection points.
